MMO Wire Anode





Product Introduction

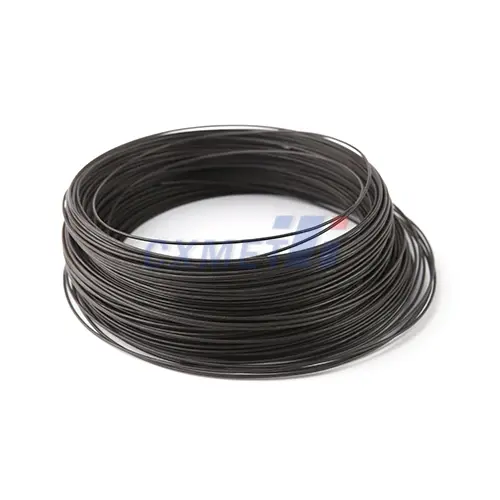

MMO Wire Anode also known as Mixed Metal Oxide Wire Anode is a high-performance anode solution used widely in cathodic protection systems across various industries. At Shaanxi CXMET Technology Co Ltd we manufacture MMO Wire Anodes using high purity solid titanium wire that complies with ASTM standards. The titanium substrate is coated with a thin but durable layer of iridium and tantalum oxides ensuring long-term stability and low consumption rate.

Compared with traditional anodes MMO Wire Anodes remain virtually unchanged in size and shape during their entire service life. This means minimal maintenance and exceptional reliability for clients who demand consistent protection performance in corrosive environments.

With decades of experience and strong expertise in rare and refractory metals our company delivers MMO Wire Anodes that meet international standards and project-specific needs. Whether you are operating in soil freshwater or marine environments our MMO Wire Anodes are engineered to perform efficiently and last longer.

Key Features of MMO Wire Anode

1 Easy to handle and install even in challenging field conditions
2 No on-site spot welding required simplifying the installation process
3 Cost-effective over time due to reduced power requirements and extended lifespan
4 Stable and consistent output during the service life
5 High corrosion resistance in aggressive environments
6 Lightweight yet mechanically strong

These features make MMO Wire Anode a preferred solution for a wide range of cathodic protection applications where long-lasting and maintenance-free protection is required.

Excellent electrical conductivity



Titanium anodes offer excellent conductivity, ensuring efficient current flow and stable electrochemical performance

Compatible with high current outputs



Titanium anodes withstand high current outputs, maintaining performance, durability, and stability in demanding electrochemical applications.

Corrosion resistance





Titanium anodes resist corrosion in harsh environments, ensuring long service life and consistent electrochemical efficiency.

Simple installation and maintenance



Titanium anodes are easy to install and maintain, reducing downtime and simplifying system operation and servicing.

Long use time





Titanium anodes offer long service life, maintaining performance over time and reducing replacement frequency and maintenance costs.

Technical Specifications of MMO Wire Anode

Note Coating thickness and current output can be adjusted according to project requirements. For special environments we offer additional coating combinations.

​

​

Applications of MMO Wire Anode

MMO Wire Anode from Shaanxi CXMET is widely used in the following areas

• Water storage tanks internal protection

• Tank bottom cathodic protection

• Linear anode systems for pipelines

• Ground bed anodes for land-based structures

• Reinforced concrete structures including bridges and tunnels

Its versatility makes it suitable for both new construction and retrofit applications.

Operating Environments

MMO Wire Anode is designed for operation in multiple environments including

• Soil

• Carbonaceous backfill

• Freshwater

• Brackish water

• Marine and seawater environments

Our titanium-based anode provides excellent electrochemical stability ensuring consistent performance across a range of pH and conductivity conditions.

Cable Options for MMO Wire Anode

To ensure durability and optimal conductivity we offer a variety of cable insulation and material combinations including

• XLPE PVC for general use and standard applications

• HMWPE for harsh chemical environments

• PVDF for high-performance chemical and temperature resistance

• Customized cable designs based on project specifications

All cables are securely connected and sealed at our factory ensuring long-lasting integrity and protection against moisture and mechanical damage.

Additional Customization and Services

Shaanxi CXMET provides the following value-added services with MMO Wire Anodes

• Availability of titanium or titanium copper composite wires

• Anodes supplied with or without factory-attached leads

• Customizable anode coating type and thickness

• Adjustable current output and design life as per client requirements

• Support for special coating ratios or multi-layer coating systems

• Batch testing for coating adhesion current capacity and accelerated life

We ensure every product undergoes stringent quality checks including X-ray coating thickness verification accelerated life testing and visual inspections before shipment. This helps us maintain consistent quality and build long-term trust with our global customers.

Packaging and Logistics

We understand the importance of safe and secure delivery. Therefore MMO Wire Anodes are packaged using industry-grade materials and techniques. Packaging options include

• Coils on wooden spools

• Wrapped with plastic and moisture barriers

• Placed in heavy-duty cartons or plywood crates

• Labeled clearly for easy identification

• Export-ready documentation and fumigation certificates included if required

Our logistics team handles both air and sea shipments. We work with international freight companies to ensure timely and cost-effective delivery to any destination worldwide.

Company Overview

Shaanxi CXMET Technology Co., Ltd., founded in 2005, is headquartered in China's Titanium Valley and operates a 50,000 m² facility. With 10 million RMB in registered capital and over 80 technical staff, we specialize in R&D, manufacturing, and exporting of non-ferrous and refractory metals, including titanium, nickel, tantalum, niobium, zirconium, molybdenum, and tungsten.

Our materials serve industries ranging from marine and oil & gas to medical, chemical, electronics, and aerospace. We uphold integrity, development, innovation, and excellence in service. Our mission is to create value for clients, benefit our enterprise, and support employee growth. With a forward-looking vision, we strive to innovate and lead the global titanium market.

Factory show

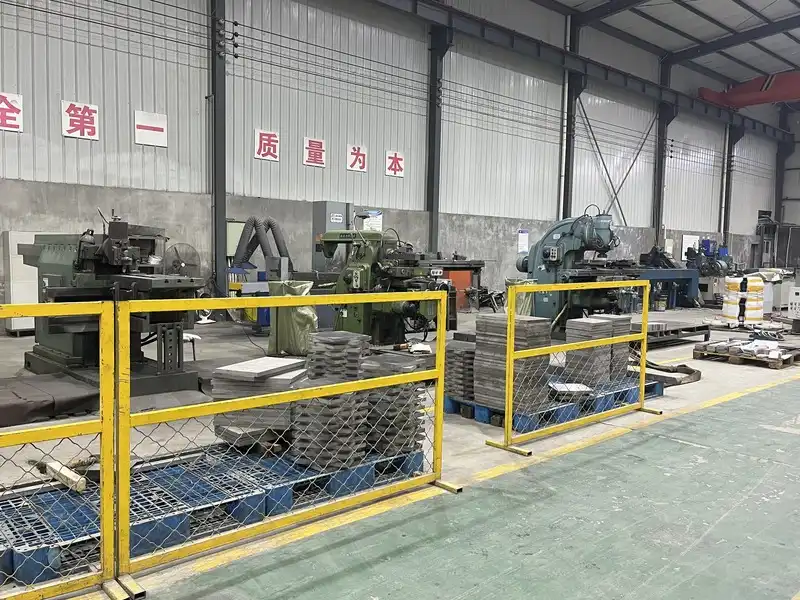

Production workshop

		​​​​​​​

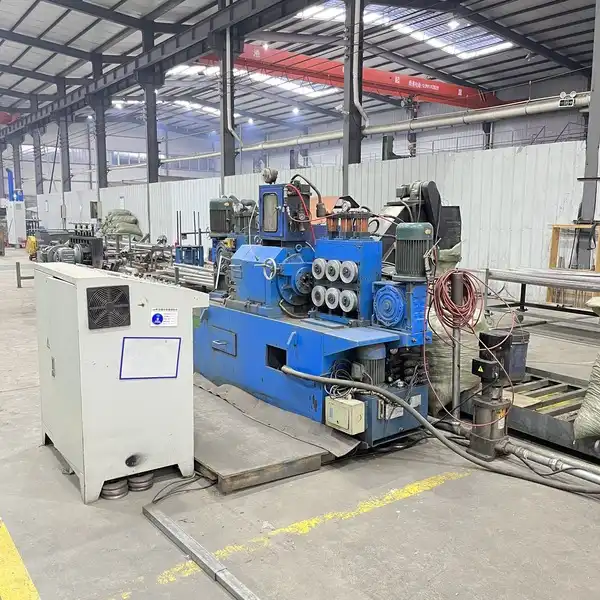

Production Equipments

Skin peeling machine

Sawing Machine

Planer

Wire Coiling Machine

Polishing Machine

Straightening Machine

Main Products

3D PRINTING PRODUCTS

ANODE PRODUCTS

TITANIUM PRODUCTS

NON-FERROUS METAL PRODUCTS

CUSTOMIZED PRODUCTS SERVICES

Why Choose Us

High Quality: Only ASTM-certified raw materials

Advanced Equipment: Precision coating and welding machinery

Professional Team: 80+ skilled engineers and technicians

One-Stop Solution: From design to export logistics

Global Reach: Experience in 40+ export countries

Responsive Service: Fast quoting and technical support

9001 Certification

9001 Certification

ISO 13485

ISO 13485

Our strengths include

• Broad range of products including titanium nickel tantalum niobium tungsten molybdenum and zirconium

• Strong production capabilities and advanced equipment

• Over 80 experienced technicians and engineers

• Ability to customize products based on drawings or specifications

• Emphasis on R and D and continuous innovation

• Export-focused business model with clients in over 40 countries

Our products serve key industries such as marine oil and gas chemical processing power generation metallurgical medicine electronics aerospace and coating technology. With strict quality control systems and international certifications we have earned a strong reputation for reliability and performance.

Our Corporate Values

Integrity We conduct business honestly and uphold all commitments
Development We invest in people processes and partnerships
Innovation We encourage new ideas and technological advancements
Excellence We aim to deliver top quality products and services

Our Mission

To create long-term value for customers
To contribute to industry innovation
To provide a growth platform for employees

Our Vision

To become a global leader in titanium and rare metal materials
To shape the future of the industry with trust and innovation

By choosing Shaanxi CXMET Technology Co Ltd you gain a reliable partner committed to your success.

FAQ

Q What is the typical lifespan of MMO Wire Anode
A Depending on the coating thickness and current density the design life is typically 30 years or more

Q Can you supply MMO Wire Anodes with cables already attached
A Yes we can provide pre-connected leads and customized cable lengths

Q Are your MMO Wire Anodes certified
A Yes all anodes undergo internal quality inspections and we can provide inspection reports upon request

Q What are the minimum order quantities
A We accept small sample orders as well as bulk orders Contact our sales team for details

Q Do you offer OEM or private label services
A Yes we offer full OEM support including labeling and custom packaging

Q Can you ship internationally
A Yes we ship worldwide and can handle export documentation and freight forwarding

Contact Us

Interested in MMO Wire Anode or other cathodic protection solutions Contact our expert team at sales@cxmet.com today to get the latest quote and professional support. We are ready to assist you with product selection project planning and after-sales service.
