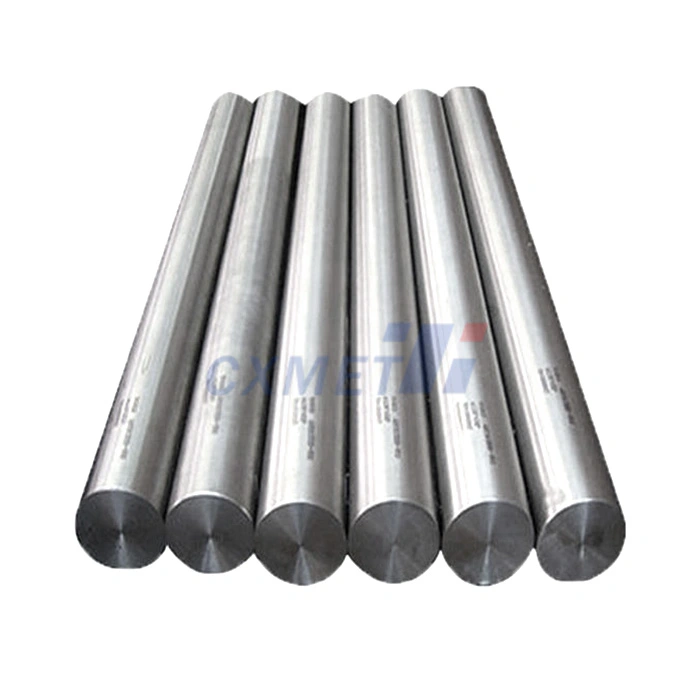

Product Introduction: Gr23 Medical Titanium Rod

The Gr23 Medical Titanium Rod, also known as Ti-6Al-4V ELI (Extra Low Interstitial), is a premium alpha-beta titanium alloy specifically designed for high-performance medical applications. Engineered for critical implant and surgical uses, this grade exhibits exceptional strength-to-weight ratio, superior biocompatibility, and excellent corrosion resistance in physiological environments. Produced by Shaanxi CXMET Technology Co., Ltd., the Gr23 titanium rod meets international standards including ASTM F136, ISO 5832-3, and AMS 4930, and is trusted by medical device manufacturers globally.

As a refined version of the popular Gr5 (Ti-6Al-4V), Gr23 features lower levels of interstitial elements such as oxygen, nitrogen, and iron, which enhances its ductility and toughness — making it ideal for load-bearing implants, orthopedic devices, and dental instruments.

Key Features of Gr23 Medical Titanium Rod

Excellent Biocompatibility: Ideal for long-term human body implantation.
Superior Mechanical Properties: High tensile and yield strength with good elongation.
Enhanced Ductility: Due to extra low interstitial content.
Corrosion Resistance: Excellent in body fluids and saline conditions.
Lightweight: Approximately 45% lighter than stainless steel.
Non-Magnetic and Non-Toxic: Safe for use in MRI environments and allergic patients.
Excellent Fatigue Resistance: Performs reliably under cyclic loading.

High Strength to Weight Ratio

Titanium rods provide exceptional strength with low weight, ensuring durability and efficiency in high-performance structural applications.

Superior Heat Resistance

Titanium rods maintain strength at high temperatures, offering superior heat resistance for aerospace, chemical, and industrial environments.

Excellent Corrosion Resistance

Titanium rods resist corrosion in harsh environments, ensuring long-term durability in marine, chemical, and medical applications.

Good Machinability

Titanium rods offer good machinability, allowing precise shaping and fabrication for aerospace, medical, and industrial component production.

Enhanced Fatigue and Creep Resistance

Titanium rods have good machinability, enabling efficient cutting, drilling, and shaping for precision engineering and custom manufacturing needs.

Gr23 Medical Titanium Rod Specifications

Property	Value
Material Grade	Gr23 (Ti-6Al-4V ELI)
Standard Compliance	ASTM F136 / ISO 5832-3 / AMS 4930
Diameter Range	4 mm – 200 mm
Length	Up to 6000 mm
Tensile Strength	≥860 MPa
Yield Strength	≥795 MPa
Elongation	≥14%
Density	4.43 g/cm³
Surface Finish	Polished, Turned, Peeled, Centerless Ground
Ultrasonic Testing	100% per AMS-STD-2154
Tolerance	H9-H11 or custom per request
Certification	EN 10204 3.1, CE Mark (for medical use)

product-1-1

Applications of Gr23 Medical Titanium Rod

Gr23 titanium rods are widely used in:

Orthopedic Implants: Femoral rods, spinal fixation systems, intramedullary nails
Dental Implants: Implant posts, abutments

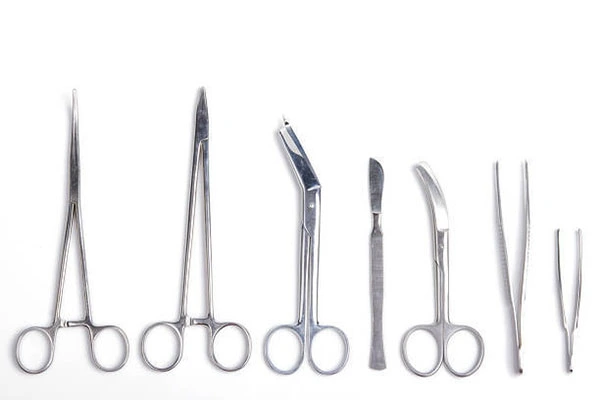

Surgical Instruments: Forceps, scissors, retractors
Craniofacial Reconstruction: Bone plates and screws
Veterinary Implants: Used in animal surgeries

Suitable Working Environments

The Gr23 Medical Titanium Rod performs well in:

Physiological Environments: Blood, body fluids, tissue-contact environments
Corrosive Media: Saline, plasma, and disinfectant exposure
MRI-Compatible Settings: Non-magnetic properties allow safe imaging
High-Cycle Load Applications: Areas with long-term cyclic loading

Customization Available

At Shaanxi CXMET Technology Co., Ltd., we offer full customization on:

Sizes and Lengths: Tailored dimensions based on implant or device design
Surface Finishes: Polishing, pickling, anodizing
Machining and Precision Tolerances: CNC machining for complex geometries
Batch Traceability: Full documentation for medical regulatory compliance
Special Packaging: Sterile packaging or cleanroom-ready delivery upon request

Main Advantages of Gr23 Medical Titanium Rod

High Strength-to-Weight Ratio: Strong as steel, 45% lighter
Biological Compatibility: Excellent for human implantation without rejection
Long-Term Durability: Resistant to fatigue and corrosion over decades
Regulatory Approved: Meets medical-grade certification worldwide
Cost-Efficient for Mass Production: Reliable performance across batch lots
Enhanced Safety: Low impurity content reduces risk of allergic reactions

Packaging and Logistics

To ensure product integrity and compliance with medical regulations:

Vacuum Packaging: To avoid contamination and oxidation
Double-Layer Sealing: Inner medical-grade polyethylene bag and outer aluminum foil
Wooden Crates with Foam Padding: For international transport
Labeling and Traceability: Each rod labeled with batch number, material spec, and size
Logistics: Fast delivery worldwide via air, sea, or express courier

Company Overview

Shaanxi CXMET Technology Co., Ltd., founded in 2005, is headquartered in China's Titanium Valley and operates a 50,000 m² facility. With 10 million RMB in registered capital and over 80 technical staff, we specialize in R&D, manufacturing, and exporting of non-ferrous and refractory metals, including titanium, nickel, tantalum, niobium, zirconium, molybdenum, and tungsten.

Our materials serve industries ranging from marine and oil & gas to medical, chemical, electronics, and aerospace. We uphold integrity, development, innovation, and excellence in service. Our mission is to create value for clients, benefit our enterprise, and support employee growth. With a forward-looking vision, we strive to innovate and lead the global titanium market.

Factory show

Production workshop

Production Equipments

Skin peeling machine

Sawing Machine

Planer

Wire Coiling Machine

Polishing Machine

Straightening Machine

Main Products

3D PRINTING PRODUCTS

ANODE PRODUCTS

TITANIUM PRODUCTS

NON-FERROUS METAL PRODUCTS

CUSTOMIZED PRODUCTS SERVICES

Why Choose Us – Company Advantages

Shaanxi CXMET Technology Co., Ltd. has been a trusted supplier of high-performance titanium and refractory metals since 2005. Headquartered in Baoji, known as "China’s Titanium Valley," we bring unparalleled advantages:

Extensive Product Range: Covering titanium, zirconium, tantalum, niobium, tungsten, molybdenum alloys
Advanced Production Capabilities: Forging, rolling, CNC machining, and cleanroom packaging
Innovation Focus: Constant development of new alloys and implant-compatible materials
Customized Offerings: Tailored solutions for medical, aerospace, chemical, and energy sectors
Global Export Experience: 20+ years of shipping to Europe, America, Asia, and more
Professional Technical Team: 80+ engineers and material scientists at your service

Our Mission: Create value for our clients, drive technological advancement, and set the benchmark in medical titanium manufacturing.

9001 Certification

ISO 13485

FAQ

Q1: What certifications do your Gr23 titanium rods carry?
A1: Our rods comply with ASTM F136, ISO 5832-3, and AMS 4930. Certificates include EN 10204 3.1, CE mark, and full traceability.

Q2: Can I order a small quantity for R&D or clinical testing?
A2: Yes. We accept small-batch orders and can provide precision machining and documentation.

Q3: Do you support OEM manufacturing for implant device companies?
A3: Absolutely. We offer complete OEM/ODM services from raw material to finished component.

Q4: What is your lead time?
A4: Standard rods ship within 7–10 days. Customized products may take 2–3 weeks.

Q5: How do you ensure quality control?
A5: All rods undergo 100% ultrasonic testing, chemical analysis, mechanical testing, and are inspected by our QC team.
